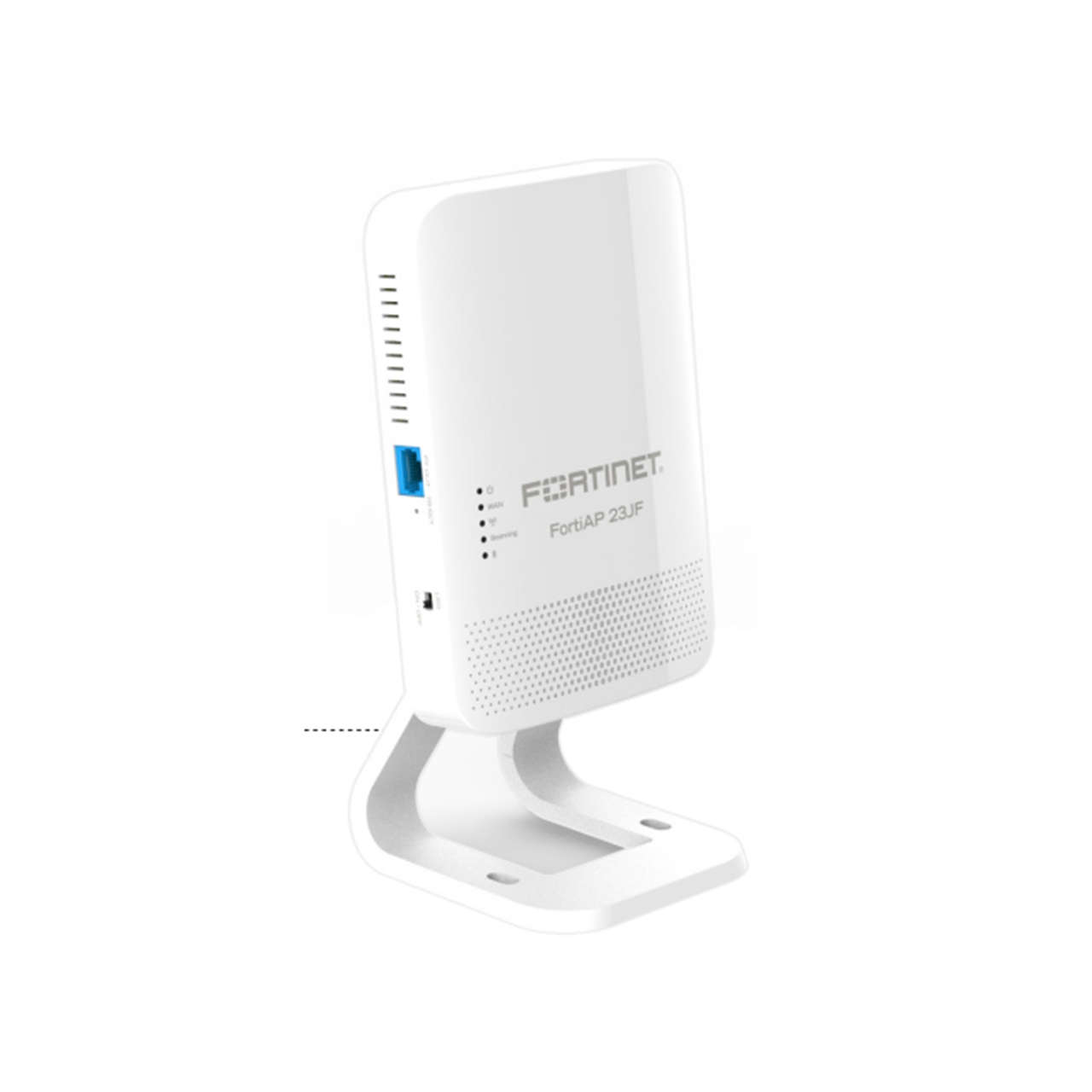

اکسس پوینت فورتی نت FortiAP-23JF

Fortinet FortiAP 23JF یا FAP-23JF

  • نقطه دسترسی 2×2 MU-MIMO
  • موج 802.11ax
  • رادیو سه‌گانه 2.4 و 5 گیگاهرتز
  • چهار آنتن داخلی/خارجی
  • حداکثر 574 + 1200 مگابیت بر ثانیه



امکان پیش سفارش

 برای دریافت قیمت تماس بگیرید

گارانتی ستاک
تحویل فوری
ارسال رایگان
پشتیبانی و خدمات
پس از فروش
اصالت کالا

محصولات مرتبط

مشخصات فنی

Hardware Type

Indoor walljack/desktop AP

Number of Radios

3 + 1 BLE

Number of Antennas

3 dual band internal Wi-Fi + 1 single band 2.4 GHz
BLE/ZigBee

Antenna Type and Peak Gain

PCB antenna
Dual band: 4.0 dBi in 2.4 GHz
band and 4.0 dBi in 5 GHz band
BLE antenna: 3.5 dBi in 2.4 GHz band

Frequency Bands (GHz)

2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725,
5.725–5.850

Radio 1 Capabilities

Frequency band: 2.4 GHz
Channel width: 20/40 MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2×2 Service

Radio 2 Capabilities

Frequency band: 5.0 GHz
Channel width: 20/40/80 MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2×2 Service

Radio 3 Capabilities

Frequency bands: 2.4 GHz and 5.0 GHz
MIMO Chains: 1×1 Frequency Scanning

Maximum Data Rate

Radio 1: up to 574 Mbps
Radio 2: up to 1200 Mbps
Radio 3: Frequency scanning only

Bluetooth Low Energy Radio

Bluetooth scanning and iBeacon advertisement @ 10
dBm max TX power

Power over Ethernet (PoE)

• 802.3at PoE default( optional DC adaptor)
• Powered via DC power supply – Full System
functionality + USB + PSE (8023af 15.4W)
• Powered by 802.3af – Only Radio functionality is
operational (No USB/PSE supported)
• Powered by 802.3at – Full System functionality+
PSE(7w)

EAP Type(s)

EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA,
EAP-FAST

User/Device Authentication

WPA™, WPA2™, and WPA3™ with 802.1x or preshared
key, WEP, Web Captive Portal, MAC blocklist &
allowlist

Maximum Tx Power (Conducted)

Radio 1: 2.4 GHz: 25 dBm / 158 mW (2 chains
combined)*
Radio 2: 5 GHz: 21 dBm / 158 mW (2 chains
combined)*
Radio 3: N/A

IEEE Standards

802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h,
802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v,
802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X,
802.3ad, 802.3af, 802.3at, 802.3az

Interfaces

4x 10/100/1000 Base-T RJ45 Ports (1x 802.3at
PoE(PD), 1x 802.3af PoE (PSE), 2x Non-PoE Ports)
3 RJ-45 Ports (1xPass-through in, 1x Pass-through
out, 1x RS-232 Serial Port)

مستندات

download دانلود دیتاشیت FortiAP 23JF
