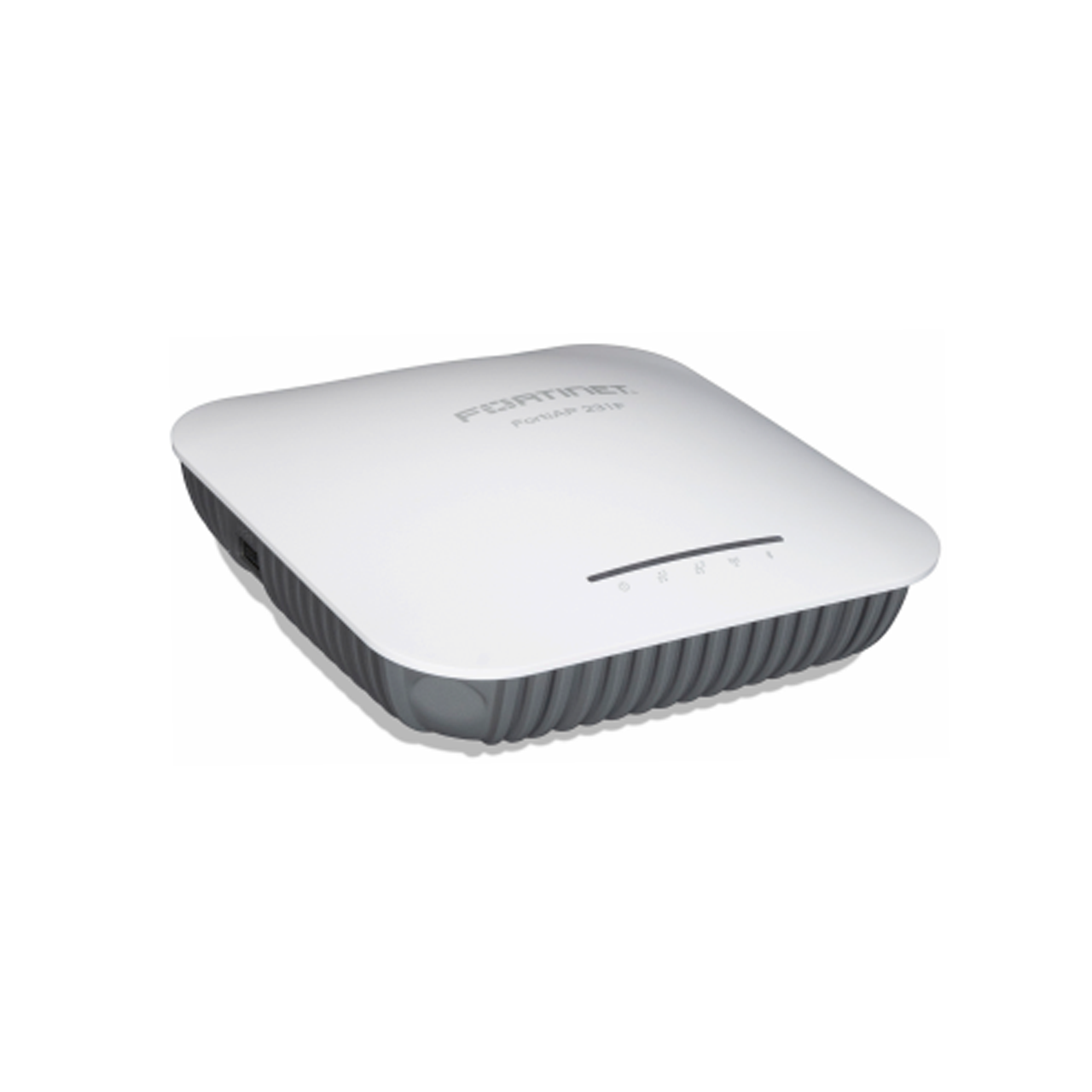

اکسس پوینت فورتی نت FortiAP-231F

Fortinet FortiAP 231F یا FAP-231F

  • نقطه دسترسی 2×2 MU-MIMO
  • موج 802.11ax
  • رادیو سه‌گانه 2.4 و 5 گیگاهرتز
  • چهار آنتن داخلی/خارجی
  • حداکثر 574 + 1201 مگابیت بر ثانیه



امکان پیش سفارش

225،500،000

اکنون موجود نیست؛ اما می‌توانید این محصول را پیش‌خرید کنید

گارانتی ستاک
تحویل فوری
ارسال رایگان
پشتیبانی و خدمات
پس از فروش
اصالت کالا

محصولات مرتبط

مشخصات فنی

Number of Radios

3 + 1 BLE

Number of Antennas

3 Dual band Internal Wi-Fi + 1 BLE/ZigBee

Antenna Type and Peak Gain

PIFA antenna
Dual band: 4.5dBi for 2.4Ghz and 5.5dBi for 5GHz
BLE antenna 4.0dBi at 2.4GHz band

Frequency Bands

2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725,
5.725–5.850

Radio 1 Capabilities

Frequency band: 2.4GHz
Channel width: 20/40MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2×2 Service

Radio 2 Capabilities

Frequency band: 5.0GHz
Channel width: 20/40/80MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2×2 Service

Radio 3 Capabilities

Frequency bands: 2.4GHz and 5.0GHz
MIMO Chains: 1×1 Frequency Scanning

Maximum Data Rate

Radio 1: up to 574 Mbps
Radio 2: up to 1201 Mbps
Radio 3: Frequency scanning only

Bluetooth Low Energy Radio

Bluetooth scanning and iBeacon advertisement @ 10
dBm max TX power

Power over Ethernet (PoE)

• 802.3at PoE default
• 1 port powered by 802.3at – full system functionality
+ USB support
• 1 port is connected to 802.3af – no USB support

EAP Type(s)

EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA,
EAP-FAST

User/Device Authentication

WPA™, WPA2™, and WPA3™ with 802.1x or Preshared
key, WEP, Web Captive Portal, MAC blocklist &
allowlis

Maximum Tx Power (Conducted)

Radio 1: 2.4GHz: 23 dBm / 200 mW (2 chains
combined)*
Radio 2: 5GHz: 22 dBm / 158 mW (2 chains
combined)*
Radio 3: NA

IEEE Standards

802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h,
802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v,
802.11w, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad,
802.3af, 802.3at, 802.3az

Interfaces

2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS232 RJ45 Serial Port

مستندات

download دانلود دیتاشیت FortiAP 231F
